Insul-Shield™ Garage Doors
B&D Insul-Shield™ is a total insulated door system.
B&D Insul-Shield™ Garage Doors
The Insul-Shield™ also encompasses a jamb seal edge system to seal any gaps that may appear around the opening. The Insul-Shield™ EPS core allows for better thermal retention and less moisture absorption.
Whilst the Insul-Shield™ is a smart design, appearance is still important. The Insul-Shield™ is available in two modern profiles, flat wood grain or ribbed wood grain finish and available in the standard colour bond range. B&D Insul-Shield™ is a total insulated door system that starts with insulated panels, produced using two layers of high-quality steel and a solid EPS core.

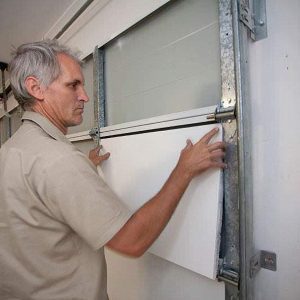

Each insulated panel is produced and made with a thermal barrier that separates the inner skins and out skins of the panel. It is a complete seal system, where the hot or cold heat from the exterior of the door will not transfer to the inside. The two skins are laminated with a urethane adhesive and sandwiched around a rigid expanded polystyrene core.
Each panel features an energy-efficient thermal break that effectively separates the inner and outer skins of the panel, reducing thermal transmission from the front to the back of the door. Then the complete sealing system, between the panels, and around the door, work to combat air migration – making the B&D Insul-Shield™ the perfect choice when you want to minimise household heating or cooling costs.
How They Work
A great option for those who are after a special look for their home. These doors also have the advantage of being able to be installed where headroom is minimal usually, less than 350mm which is the minimum requirement for a roller door.
Available in a number of profiles and colours, they also come with windows, for those who wish to let in the natural light.Available door widths are from 1800mm to 6600mm, while door heights range from 1800 to 2850. Higher doors are available on request. These doors can be operated manually or with a motor.
Doors comprise of a number of rigid sections that are hinged together and move vertically in the opening, then horizontal along the ceiling, guided by tracks and counterbalanced with springs. Commonly used on new houses where a pattern or style is required to match the style of the house, these doors can be made of steel, wood and other materials.
You may have one of those garages or carports where there is an insufficient structure in place to install a door. We can create a sound structure by installing posts and headers so a garage door can be installed. All this work can be done on the same day your door is installed.
As part of your installation you may require your carport to be filled in or a gate to be made and installed. At AllStyle Garage Doors & Window Shutters we can do all this work for you, so there is no need to organise separate trades people and have the job take longer to complete.
Insul-Shield™ is a total insulated door system that doesn’t cut corners.
Each insulated panel is produced with an energy efficient thermal barrier that effectively separates the inner and outer skins of the panel.
- THERMAL BREAK BETWEEN
- INTERNAL & EXTERNAL SKINS
- THERMAL BARRIER SEAL
- BETWEEN PANELS
- JAMB EDGE SEAL TOP & SIDES
- BOTTOM WEATHERSEAL
- COMPREHENSIVE WARRANTY
Insul-Shield™ – The Inside Story
The door sections are made using two steel skins for the front and back, with a true thermal break which does not transfer the cold and heat from the exterior skin to the interior skin, thus achieving optimal insulation performance. The two skins are laminated with liquid moisture cured, CFC free, Urethane adhesive and sandwiched around a rigid Expanded Polystyrene (EPS) insulated core. EPS is a more stable, higher quality and environmentally friendly insulating material, ideally suited for garage door applications.
A thermal break is an element of low conductivity placed in an assembly to reduce or prevent the flow of thermal energy between conductive materials.
A Complete Seal System
Drafts, or air migration will quickly negate any insulation you have and as the saying goes, “A fridge is only as good as the quality of its seals”.
The Insul-Shield™ insulated garage door system is available with up to three separate seals to combat air migration, which also keeps out the dirt and dust.
- Thermal barrier joint seal running the full width of the door, that seals off the inherent gaps between each panel.
- A deep cushioning ‘U’ shape flexible vinyl extrusion attached to the bottom panel to seal the gaps between the door and floor.
- Jamb Edge Seal System to seal any gaps there may be between the door and the opening.
Thermal Break Reduces Heat / Cold Transfer 15.5%
An independent laboratory performed a comparison test on the Insul-Shield™ and a competitor’s insulated door. The competitor’s door is typical of the industry standard for insulated garage door construction. Both doors were 5cms thick, used identical EPS insulation cores and identical steel skins front and back, however the Insul-Shield™ features a specially designed thermal break.
After two hours of direct exposure to 57ºc, temperatures were measured for thermal transmission from the front to the back of the door. The Insul-Shield™ measured 34.6ºc as compared to 42.8ºc on the competitor’s door. This is a substantial 15.5% difference at the most critical area of the door, the section joints. The interior surface comparative temperatures of the centre of the door panels were also sizeable, measuring 7.2% lower than the competitor’s.
The reason for these large differences is that the Insul-Shield™ Thermal Break does not have metal-to-metal contact from one side of the door to the other, like that of the competitor’s door. This reduces the thermal transmission of the door, which improves its overall insulation value and effectiveness.
This study confirms that the Insul-Shield™ with Thermal Break dramatically out performs other insulated garage doors, as shown by the actual infrared thermal images.
Infrared Image Comparison
R & U Values
The R-value is used in the building industry to specify the thermal rating of particular building products. This is defined as a material resistance to the flow of heat. It is expressed as the thickness of the material divided by the thermal conductivity. The U-value is essentially another way of expressing the thermal rating which is simply the inverse of R-value.
The Insul-Shield™ door results in a higher R or U value for the complete door system compared to other insulated doors in the market. This is due to the Insul-Shield™ additional features that contribute to a complete insulated door. This includes; compression seals between the panels, opening jamb and lintel seals and a physical thermal break between the front and back of the panels. The Insul-Shield™ is the only insulated door in the market that has all of these additional features.
A Greener Choice
Let’s be honest, not every choice we make can be completely ‘green’ and the same must be said for insulated doors, but we can limit the potential environmental impact of our choices.
Expanded Polystyrene (EPS) is made from expanded beads that are similar to those found in a ‘bean bag’ and contain approximately 98% air. The beads are injected into a moulding machine that applies steam and pressure, which fuses the beads together.
- EPS does not utilise Chlorofluorocarbon (CFC) or Hydro Chlorofluorocarbon (HC FC) or Formaldehyde in its manufacturing process so there is no potential for out gassing or the release of harmful toxic chemicals trapped within the material over the life of the door.
- EPS is inert, stable and does not produce methane gas or contaminating leachates.
- EPS is odourless, non-toxic and can easily be recycled
- Team the Insul-Shield™ up with one of our Controll-A-Door® automatic garage door openers, for ultimate convenience.
It’s about Longer Lifespan
EPS is a ‘closed cell’ type insulation which provides better thermal retention and less moisture absorption which, if left unchecked, can cause rust and opener wear by altering the operational characteristics of your door. Garage doors are moving objects therefore inherent stresses can occur during opening and closing cycles, along with harmful UV rays can severely reduce the performance of an insulated material. EPS however is a stable material and has a very long lifespan because it does not degrade like other forms of insulation can.
Insulated Steel Garage Doors
At 2” thick (51mm) with an integrated thermal break and a complete draft seal system, Insul-Shield™ insulated garage doors will save energy and stand the test of time.
If you are serious about making your garage space more usable and energy efficient, then contact your local B&D Garage Door dealer today.
Appearance is Important
One of the critical aspects of a garage door is its flatness (the absence of ‘oil canning’). The manufacturing process takes a finished EPS sheet cut by CNC equipment and places it between the two metal faces with engineered adhesives which are then roller/heat cured in a dimensionally controlled environment. These precise manufacturing processes allow for the achievement of a much greater surface flatness over the length of the finished panel so your garage door will look great.
Jamb Seal Colour Options
Jamb Seals are available in a choice of four modern colours in the B&D colour range. Choose from Bright White, Almond, Sandstone and Brown.
Insul-Shield™ doors are available in the standard B&D colour range, however, lighter colours are recommended to improve overall insulation performance.
For further information about Insul-Shield™, contact AllStyle Garage Doors & Window Shutters today on 08 8349 6444.
